Industrial Injection Industrial Dodge Big Iron Oil Pan For 03-18 5.9L and 6.7L Cummins Stamped Industrial Injection

Industrial Injection

Industrial

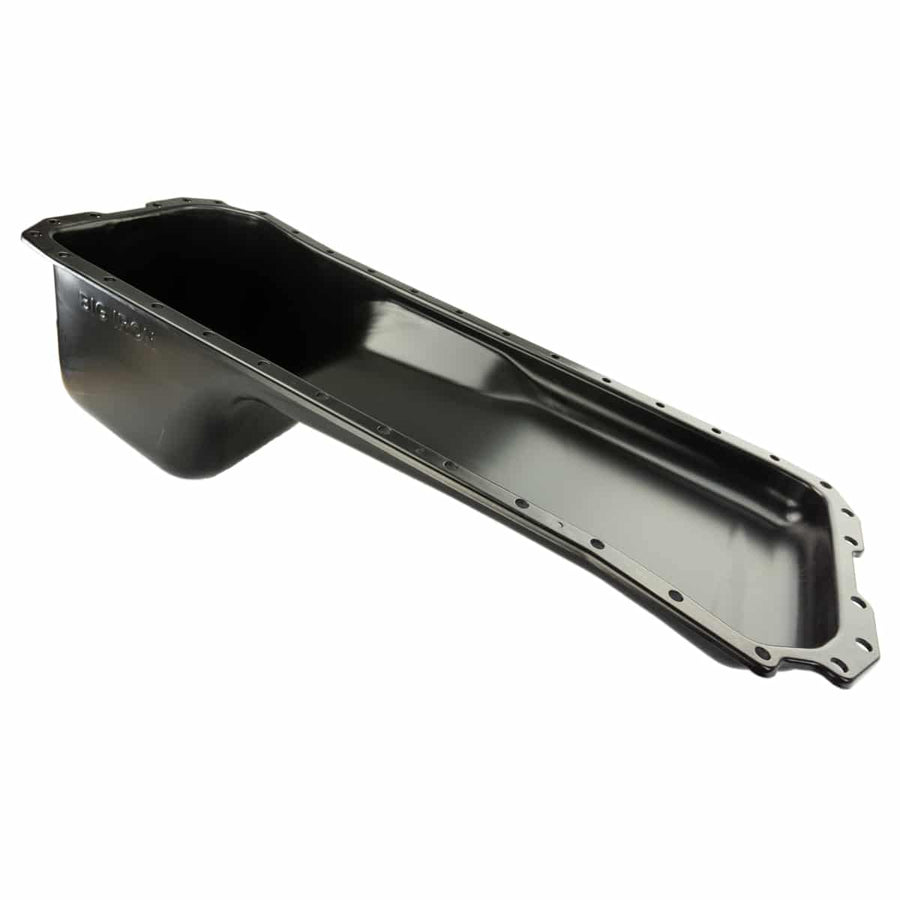

Big Iron Stamped Oil Pan 2003-2018 5.9L / 6.7L Dodge Cummins. This pan is made to fit engines that have main studs and a Gorilla Girdle installed. It has an indention pressed into the back of the oil pan so you don't need to modify your old pan and take the risk of having oil leaks.

We designed this pan with four drain holes thru the nut to allow the pan to have a complete drain. The Big Iron oil pan also has a thicker reinforced lip and it requires the 6.7L oil pan bolts which are longer than the 5.9L bolts.

Specifications:

• Easy Installation with no Frustrations!
• Direct replacement
• Built to strict quality control standards
• Engine Oil Pan for Dodge Ram Pickup Truck for 2003-2018 5.9L and 6.7L Cummins Diesel

Note: On certain 6.7L Cummins engines that come factory with a windage tray instead of a factory girdle you will be required to get the early style longer oil pickup tube bolts as well as an early style oil pickup tube. We are currently working on a fix for this to prevent any further install issues.

Depending on main stud block depth you may be required to bottom tap block for main studs to clear pan when running 12mm and  14mm Gorilla Girdles.Cummins oil pickup tube part number: 3949692 (qty 1) Cummins oil pickup tube bolt part number: 3902460 (qty 2)
