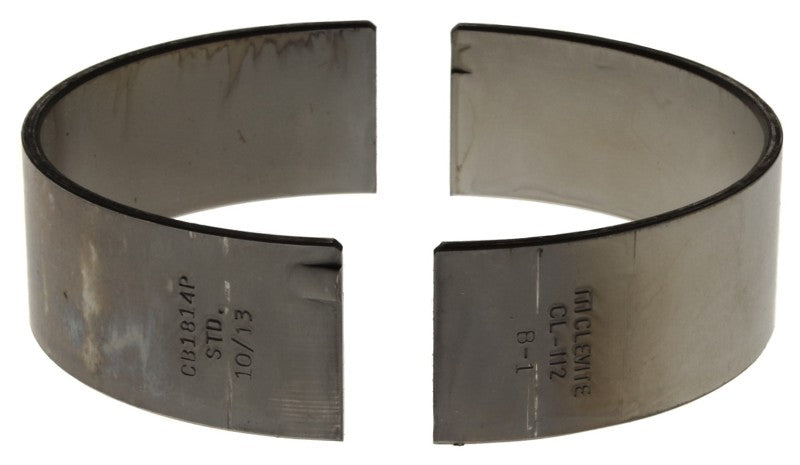

Clevite CB-1814P P-Series Rod Bearing (Standard) - 2003-2007 Ford 6.0L Powerstroke

Rebuild your 2003-2007 Ford 6.0L Powerstroke with the Clevite CB-1814P P-Series Rod Bearing. The Clevite P-Series are the oldest and most tried and true series of Clevite high performance bearings. The rod bearings in this series typically have the greatest amount of eccentricity. P-Series Rod Bearings have high crush for maximum retention and a reduced overlay thickness to prevent overlay fatigue sometimes referred to as hen tracking.

P-Series Rod Bearings use hardened steel back for added strength, and resistance to fretting. They should be used where extremely high RPMS cause severe rod bore close in. This is typically indicated by nearly full parting line to parting line shaft contact with bearings having less eccentricity.

Features:

• Size: Standard
• Clevite P-Series
• Material: TM-77

• Sold Individually


Specifications:

• Material: TM-77
• Housing Bore (Min - Max): 2.874 in
• Max. Length: 0.831 in
• Vert. Oil Clearance (Min - Max): 0.001 in - 0.004 in
• Shaft Diameter (Min - Max): 2.716 in - 2.717 in
• Wall Thickness (Max): 0.078 in
• Size: Standard
