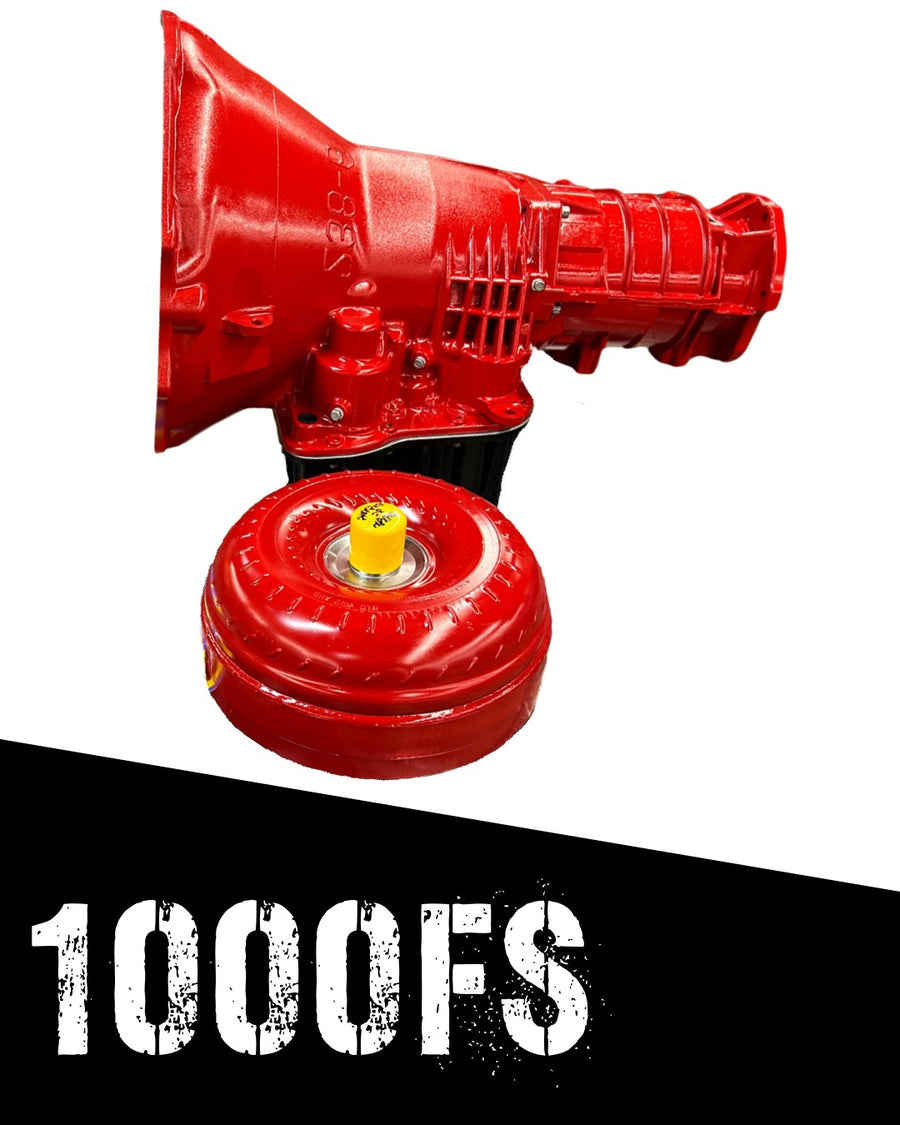

FrankBUILT Performance 1000FS 48RE 03-07 5.9L Cummins

The FrankBUILT 1000FS 48RE is the perfect upgrade for those wanting to put a ton of power to the ground without worrying about their transmission failing! Complete with everything from our proven 700HD units plus a lot more! Optional full manual valve body options. Converter stall options available.

Includes:

-Randy's Transmission XHD Quad Disk converter
-Randy's Transmission high pressure dyno tested valve body
-Sonnax 35 spline oversized input shaft
-Sonnax billet intermediate shaft
-Sonnax / TCS billet STD size output shaft
-Sonnax billet direct clutch apply piston
-Goerend forward piston belville spring
-GPZ clutch pack with extra clutch added in the direct clutch pack & OD brake (94-04)
-TCS 2nd gear servo
-Billet accumulator
-Billet band strut, arm, and anchor
-727 style 2nd gear band
-727 style transmission filter
-Sonnax PTFE thrust bearings
-Sonnax bearing kit
-All new gaskets / seals
-Updated lube modifications
-Double deep transmission pan (Georend, MagHytec, PPE)
-Custom 3 stage protective paint

3 stage protective paint. Custom powder coat options available.

2003 MY Owners PLEASE NOTE: Some early 03 models came equipped with 48REs with the 47RE internals. If your unit has the 47RE internals, you will have $850 added to your bill / deducted from your core credit to upgrade to the 48RE 6 pinion planetaries & sunshell.

2 YEAR UNLIMITED MILE WARRANTY. CLICK HERE FOR MORE INFORMATION

Core charge applies. Please see CORE POLICY for more information.

LOCAL PICK UP ONLY! SHIPPING NOT AVAILABLE AT THIS TIME!
