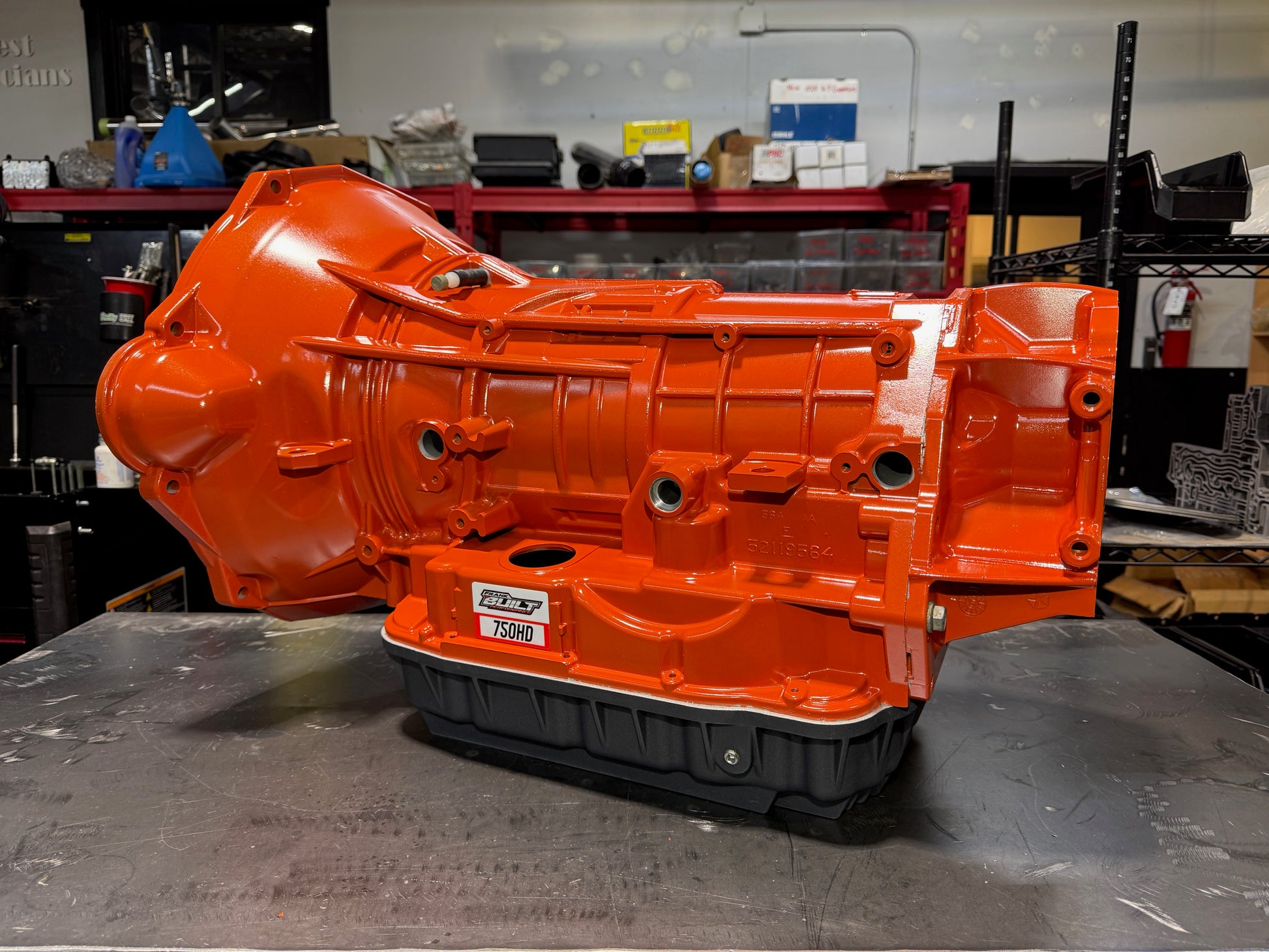

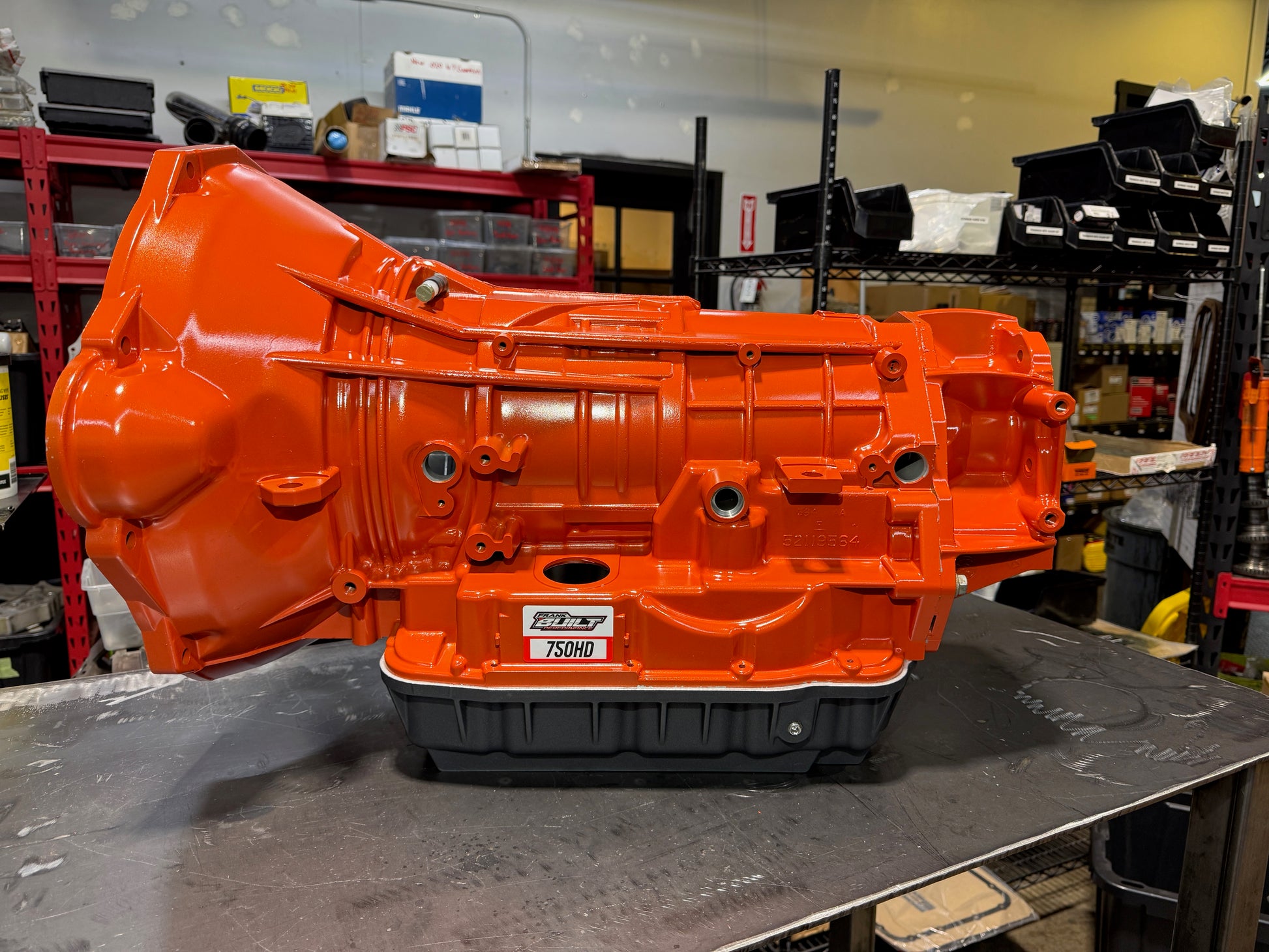

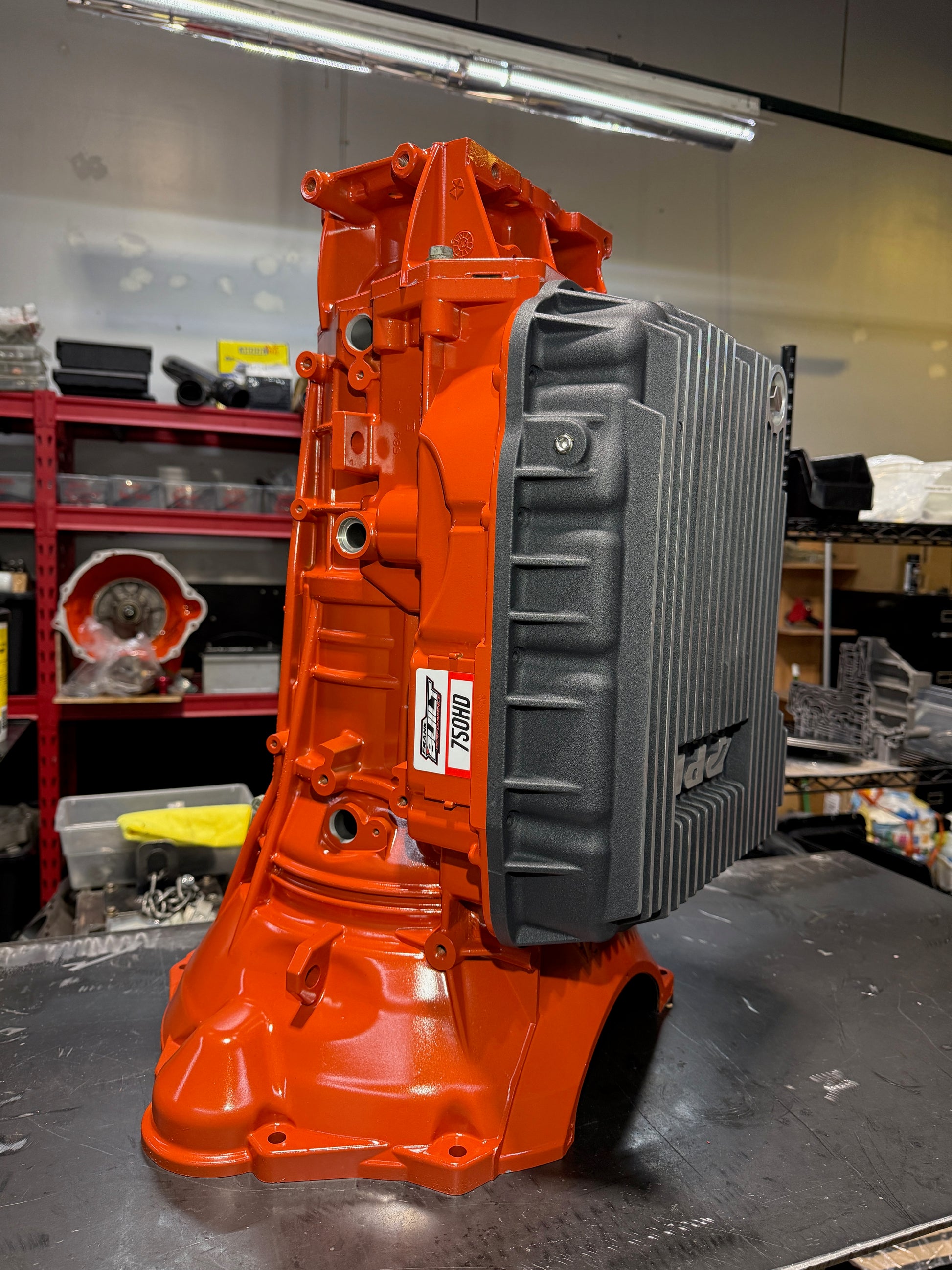

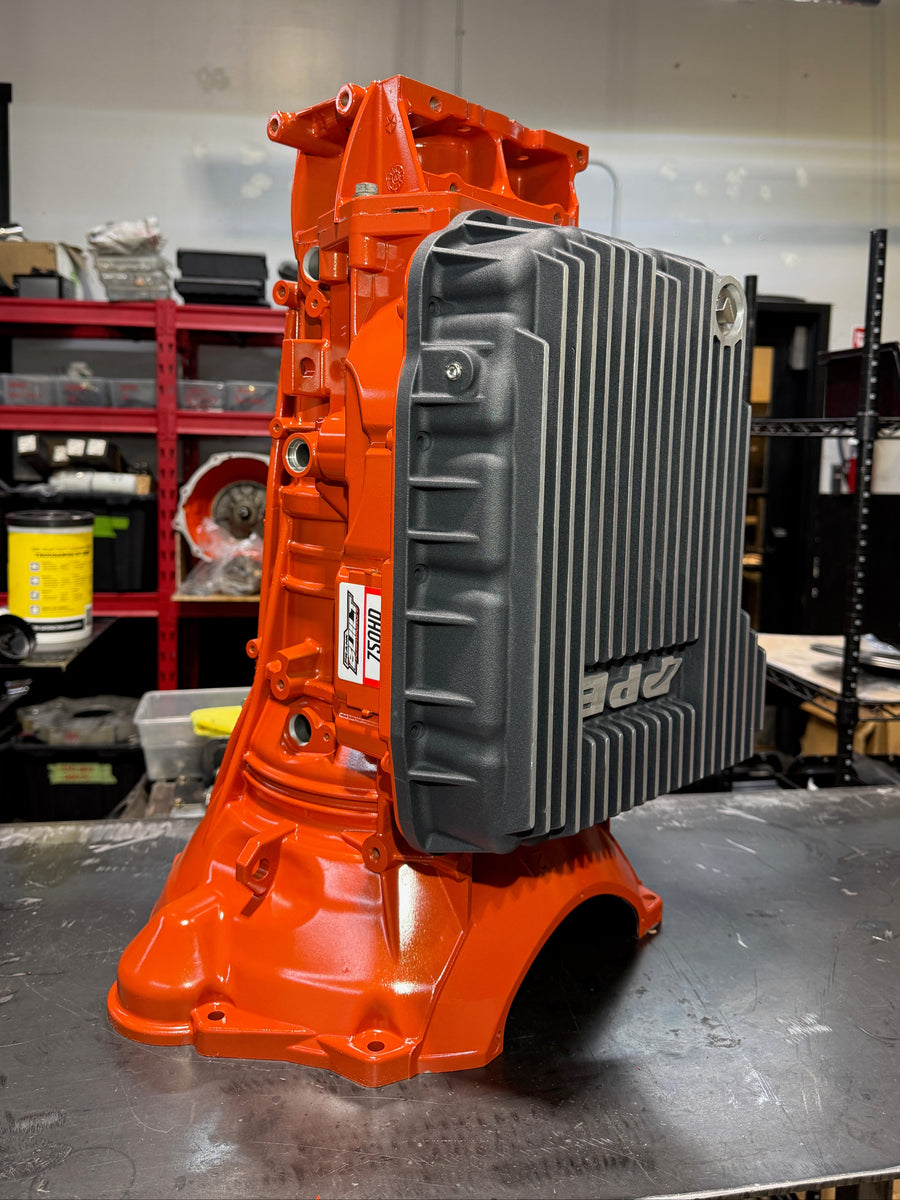

FrankBUILT Performance 750HD 68RFE 19+ 6.7L Cummins

The FrankBUILT Performance 750HD 68RFE transmission is designed for daily drivers and tow rigs with up to 750HP. This is our BEST selling transmissions. With it's fiery red exterior paint you know its built to be a versatile unit from slightly modified trucks all the way up to 750HP. Equipped with all the parts from our 600HD units and much more to hold up to more abuse.

Includes:

-Randy's Transmission "Baby Maker 2000" valve body w/ billet channel plate & new OEM solenoid pack
-Randy's Transmission updated remanufactured pump
-Randy's Transmission billet triple disk converter
-RevMax Billet OD hub shaft
-Sonnax billet input shaft
-Sonnax billet OD drum w/ custom 16 clutch OD and 12 clutch UD package for more holding power (Stock is 10 & 10).
-Added clutches in 2C / 4C
-Billet 2C apply piston
-Billet 4C snap ring retainer
-Low Reverse sprag roller upgrade
-Durabond bushings
-Sonnax bearing kit
-OEM pistons
-OEM seal & gasket set
-OEM line pressure sensor
-OEM speed sensors
-OEM filters w/ billet screw in adapter
-Borg Warner clutches
-Tig welded low reverse planet
-Cast deep transmission pan

Transmission tuning REQUIRED for warranty

Following MUST be set by tuner:
-100PSI resting line pressure, 225PSI line pressure at and above 30% throttle
-No full TCC lock up until 4th gear, underdrive pulse test turned OFF
-No "locked" up or down shifts, no 2nd gear locked shifts unless otherwise specified by FrankBUILT Performance.
-Low Reverse / Sprag hold out
-2019+, UNDERDRIVE PULSE TEST MUST BE TURNED OFF.

If truck has larger than 35" tires, MUST be re-geared to 4.10 or better for warranty.

2 YEAR UNLIMITED MILE WARRANTY. CLICK HERE FOR MORE INFORMATION

Core charge applies. Please see CORE POLICY for more information.

LOCAL PICK UP ONLY! SHIPPING NOT AVAILABLE AT THIS TIME!
