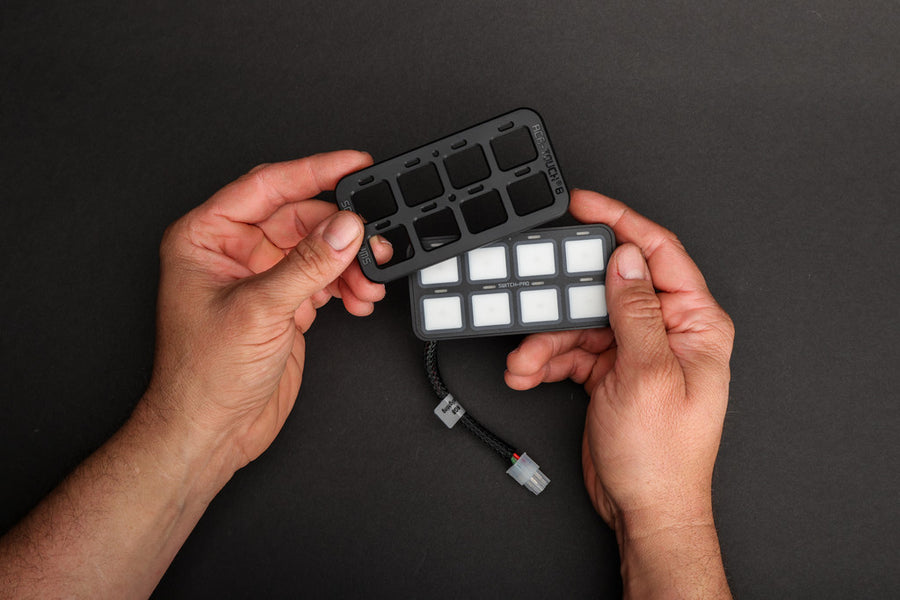

SP9100 Switch Panel Power System - spec photo 1
SwitchPros

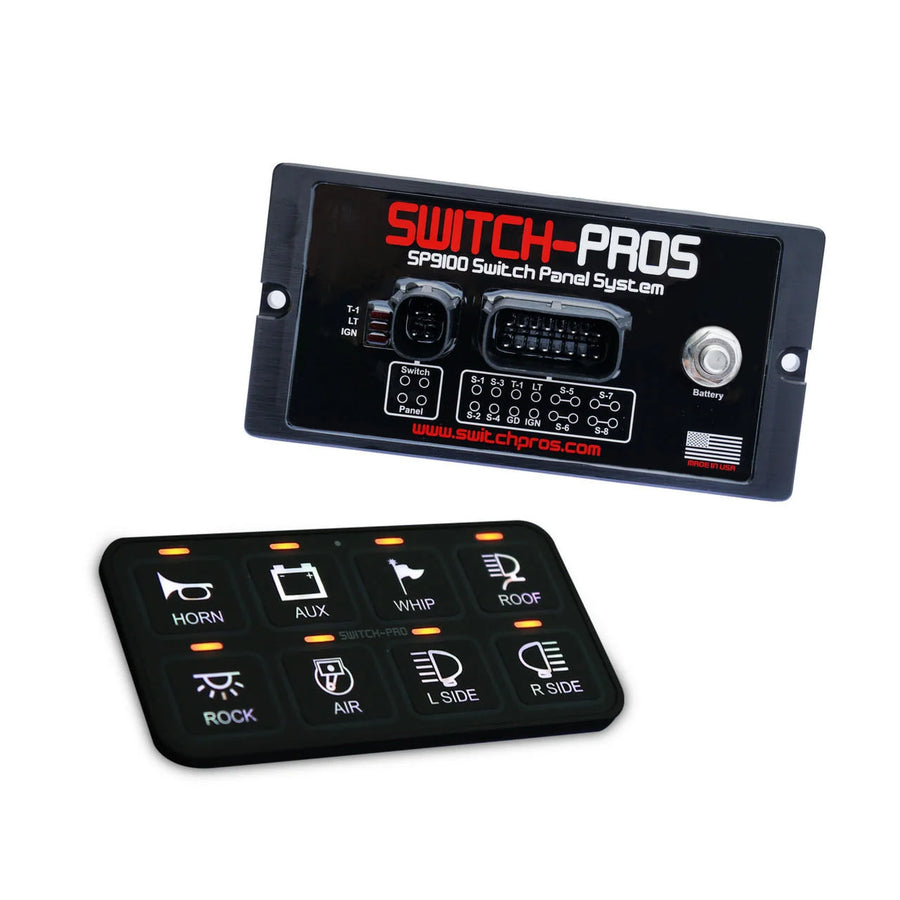

SP9100 Switch Panel Power System

SKU: SP9100

$659.00

🔔 Important Notice: This product may be temporarily out of stock. Orders are still accepted, but additional processing time may be required before shipping. Contact us to confirm current availability.

Usually ready in 24 hours
Free Shipping on Orders Over $199
Expert Support — Call or Text Anytime

The SwitchPros SP9100 Switch Panel Power System is a 125-amp, 8-output smart switch panel with Bluetooth control, RGB backlighting, and a waterproof IP67 rating. Made in the USA.

What's Included

  • Switch panel and power module
  • RCR-Touch®8 cover with snap-on design
  • 11 feet of communication cable
  • Power cable with 125A inline fuse
  • 125 user-selectable legends (horizontal orientation)
  • Installation brackets and hardware
  • 16-pin color-coded output harness
  • Detailed installation guide

Key Features

  • RGB backlighting with orange LED switch indicators
  • Built-in Bluetooth module compatible with iOS and Google Play Store apps
  • Battery voltage readout on app screen
  • IP67 waterproof rating for both panel and module
  • Programmable dimming (100% to 10% brightness) with memory
  • Master mode controlling up to 7 additional switches
  • Flash/strobe capabilities with customizable patterns
  • Low voltage disconnect and sleep mode
  • Daisy chain up to 3 panels to one power module

Specifications

  • Capacity: 125-amp with 8 outputs (4 rated @ 35A, 4 rated @ 20A)
  • Panel Dimensions: 4"L x 2"W x 0.375"H
  • Module Dimensions: 6"L x 3"W x 0.5"H (excluding connectors)
  • Temperature Rating: 125°C to -40°C
  • Made in USA
