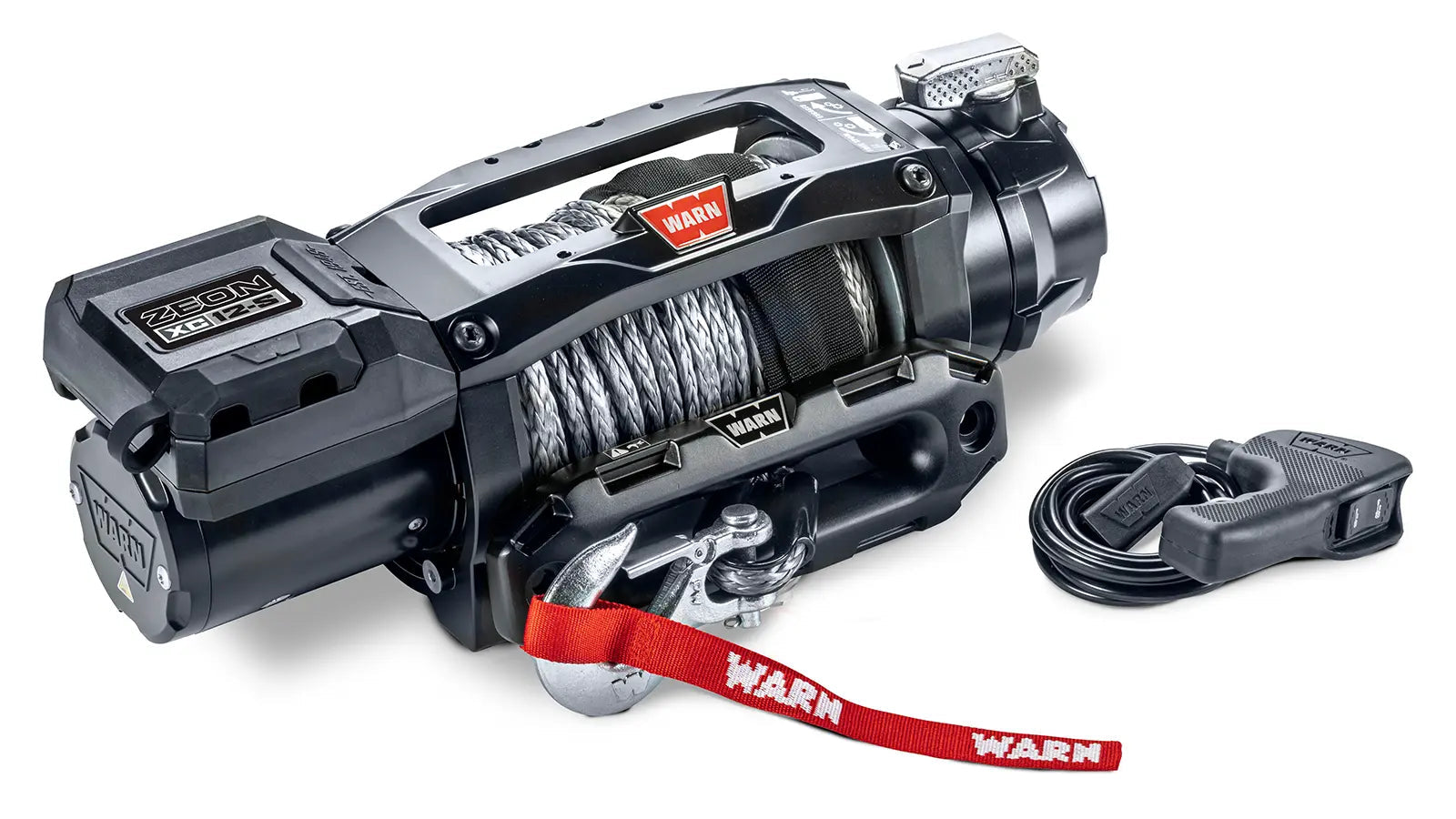

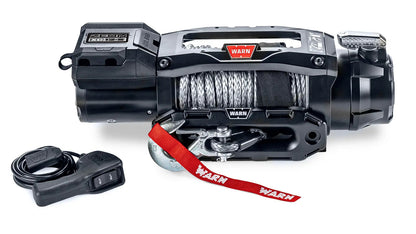

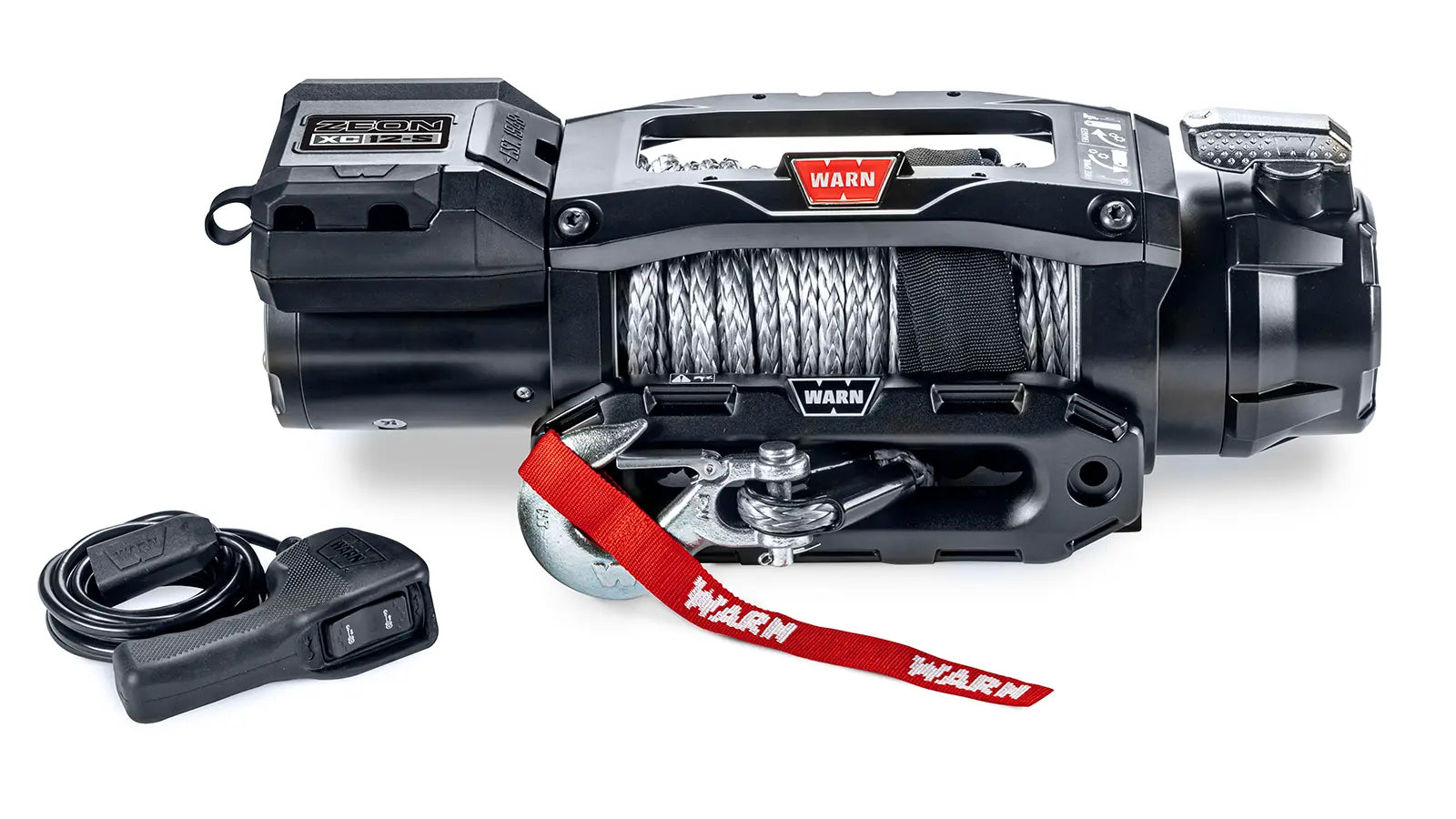

WARN ZEON XC 12-S Winch

For those looking for ZEON performance in a compact shape, the ZEON XC is the one to get. The ZEON XC 12-S offers 12,000 lbs. of pulling capacity making it great for full-size trucks, SUVs, and Jeeps. It offers many of the features of the ZEON XD, such as IP68/IP69k waterproofing and excellent performance and efficiency, but with less size, weight, and a low-profile control box. Designed, engineered, and assembled in the USA.

Features:

• Compact, low-profile design — the entire control pack sits below the top of the tie plate for tight mounting applications
• Remote socket can be relocated within 9" of the control pack for added mounting versatility
• Best-in-class line speed and capacity, superior durability
• Fully waterproof: IP68 submersion and IP69K spray rated via automotive-grade O-ring seals
• OEM-grade paint and fasteners for corrosion resistance

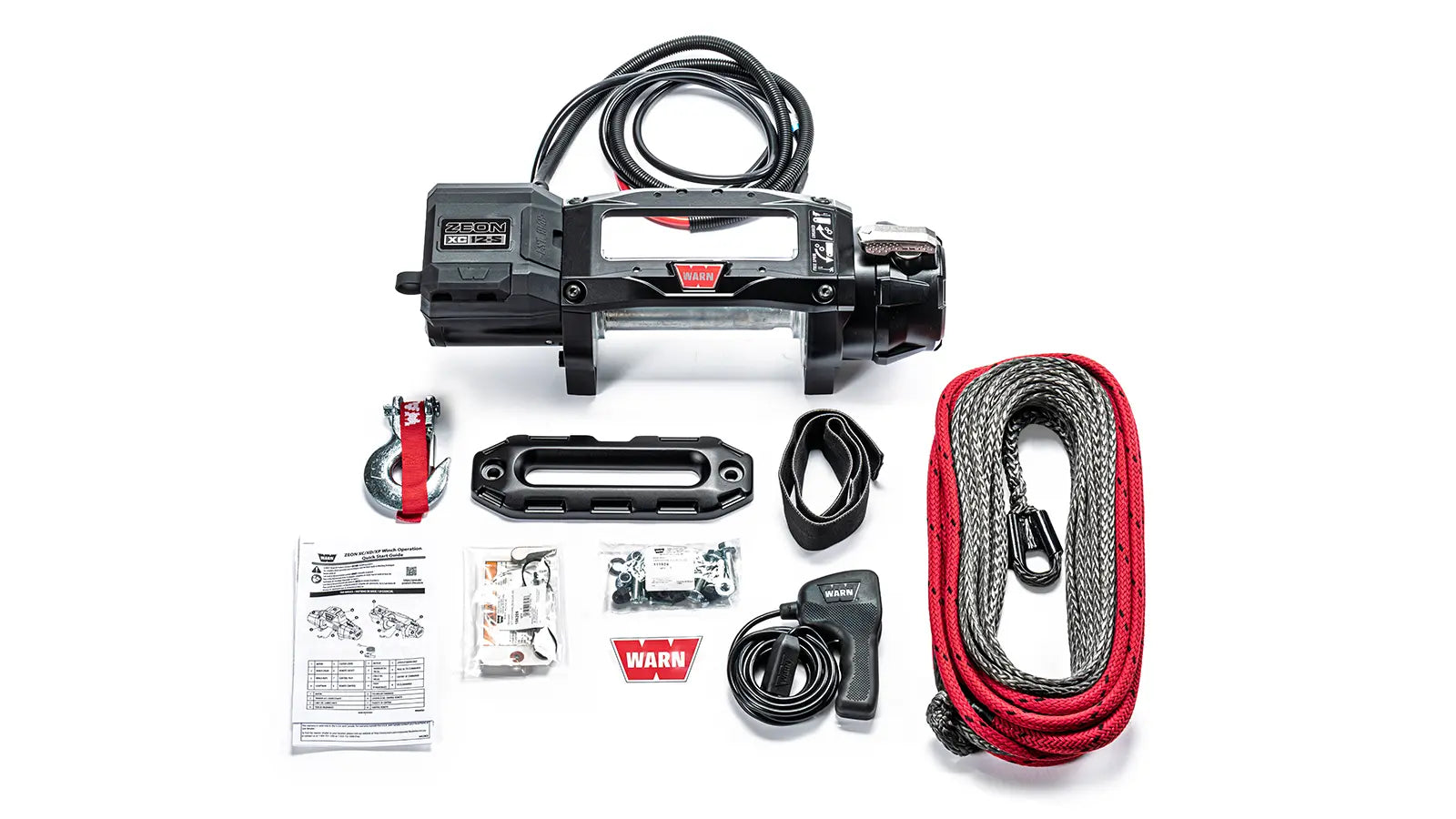

• Includes 80' of lightweight 3/8" Spydura Pro synthetic rope and a large-radius black Epic aluminum hawse fairlead
• Limited lifetime mechanical warranty, 7-year electrical warranty

Note: This product requires a compatible bumper or mounting plate for proper installation.

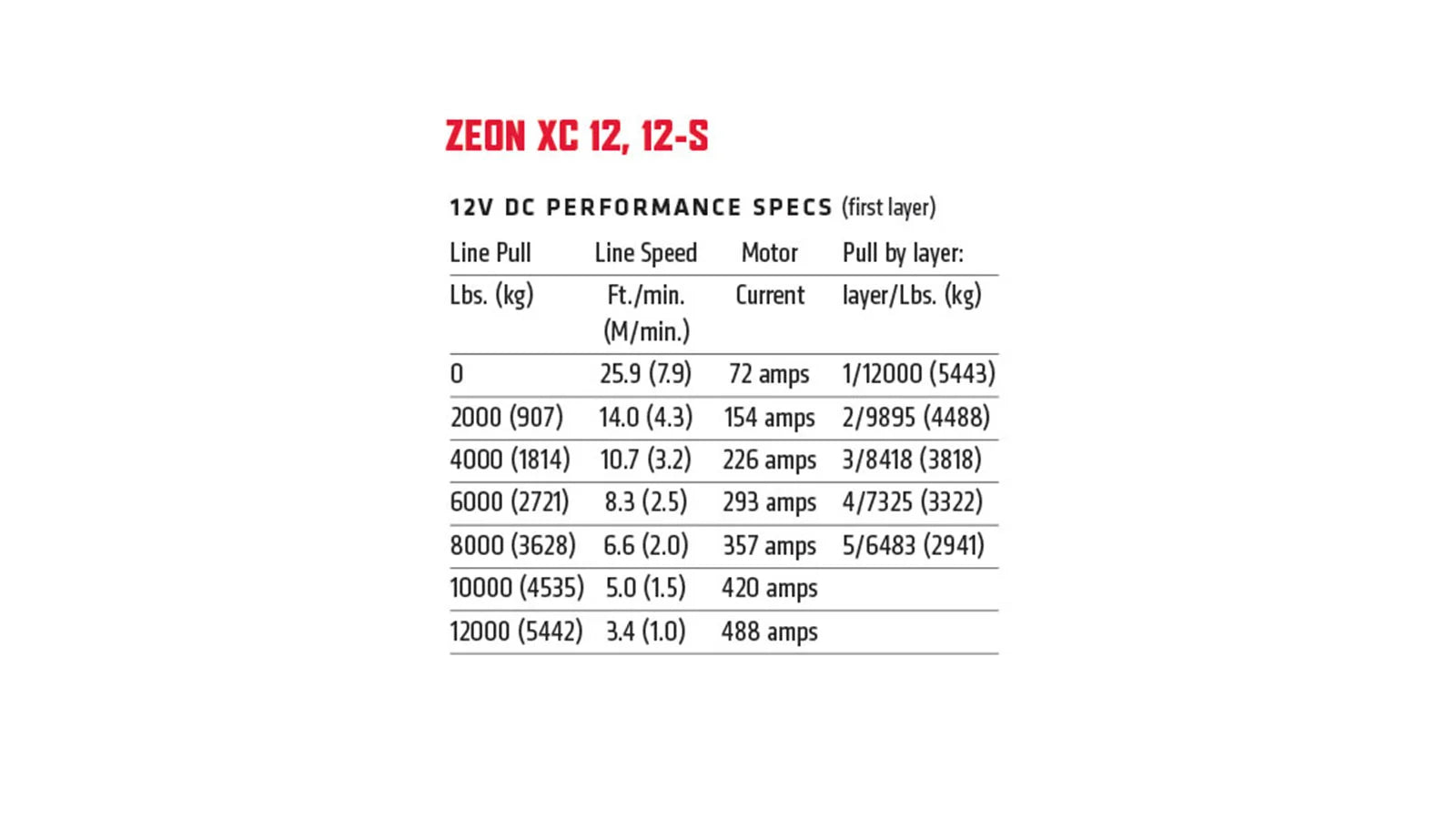

Specifications:

• Part Number: 110512
• Rated Line Pull: 12,000 lb
• Voltage: 12V
• Gear Ratio: 176:1 / 3-Stage Planetary
• Cable: 3/8 in x 80 ft Synthetic Rope
• Fairlead: Hawse

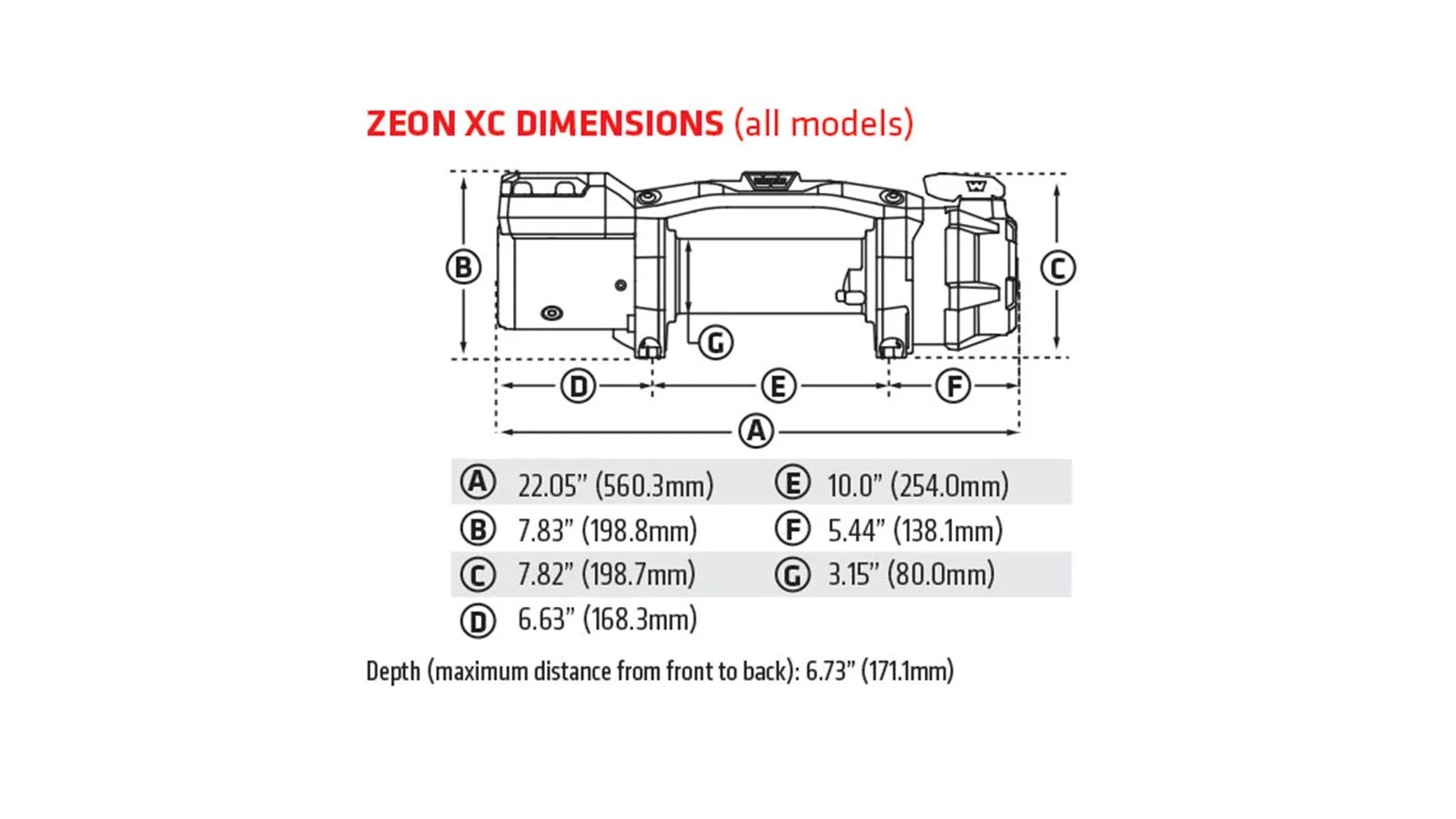

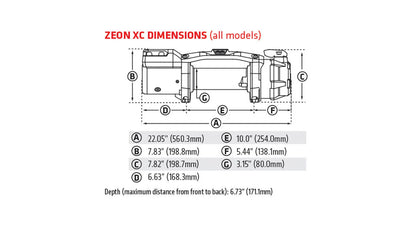

• Length: 22 in / Max Height: 7.8 in / Max Width: 6.7 in
• Mounting Bolt Pattern: 4.5 in x 10 in, 4 holes
• Remote: Wired, included
• Color: Black
