Smeding Diesel S300 Turbo Kit For The ’03-’07 5.9L Cummins
A Tried And True Turbo
For decades, the S300 has been a popular aftermarket alternative for Cummins owners seeking improved reliability and performance. This turbo platform’s ability to handle higher boost and faster shaft speeds means it’s much better suited to the demands most diesel owners place on their trucks. Additional benefits include lower EGT and less drive pressure, which means an easier life for your engine (especially the head gasket). The S300 turbo’s simplistic, fixed geometry design further lends itself to longevity thanks to having no vanes to seize up and no actuator to fail.
More Performance & Added Reliability—At A Fraction Of The Cost

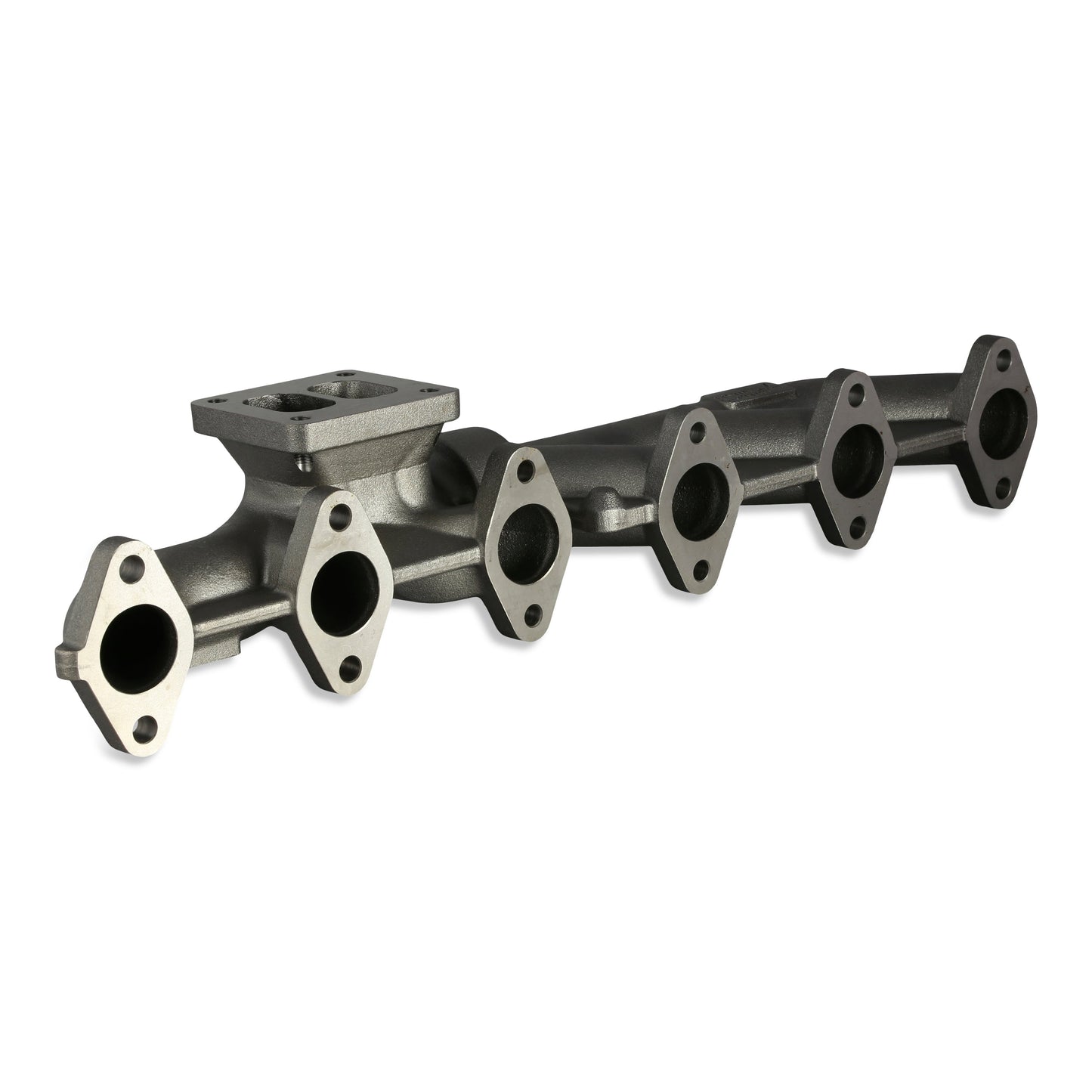

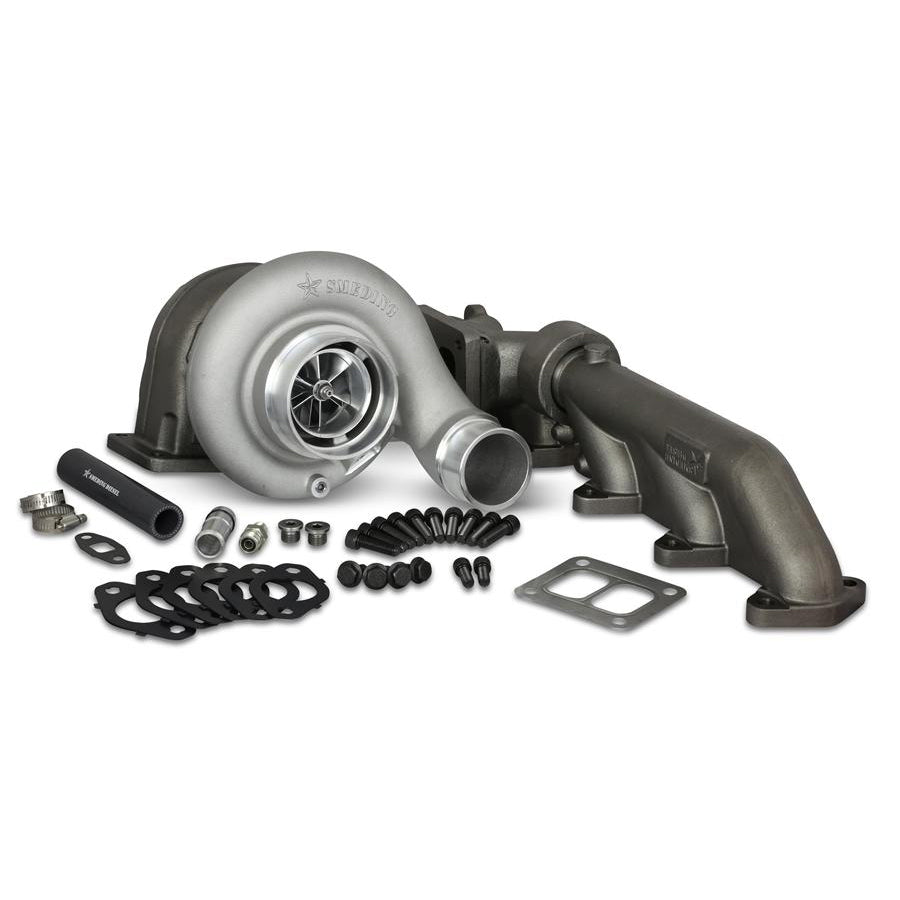

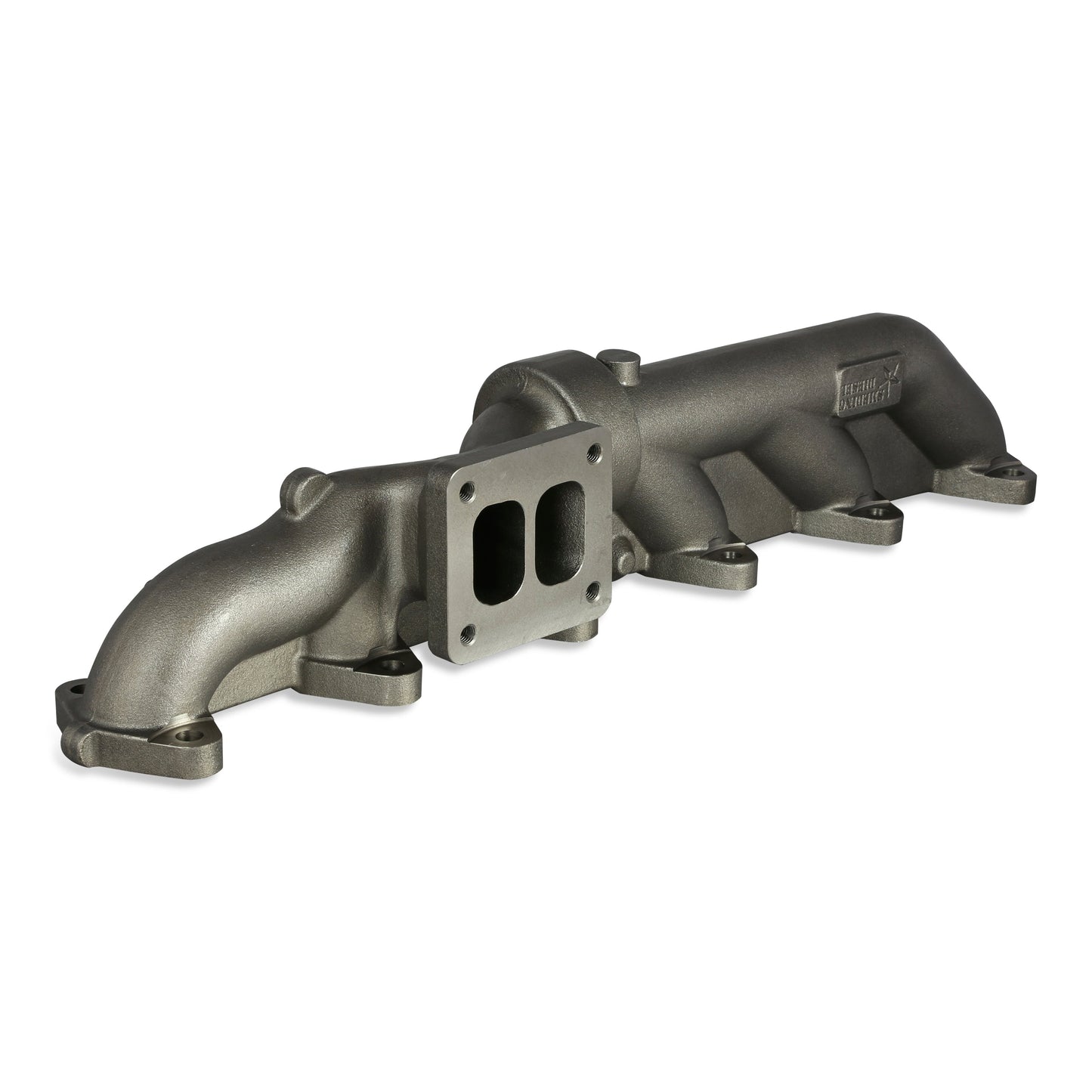

In addition to an upgraded turbo, this comprehensive kit comes with everything you need to install an S300 on your ’03-'07 5.9L Cummins. This includes a new, two-piece T4 divided exhaust manifold, which outflows the factory unit and provides for quicker spool up. Fresh exhaust manifold gaskets and mounting bolts simplify manifold installation, and the supplied coolant plugs, oil drain extension, and turbo drain gasket make the job as straightforward as possible. And, with this S300 Turbo Kit starting at $1,700 it’s considerably more affordable than any replacement (and even remanufactured) OEM VGT!
Seamless Integration

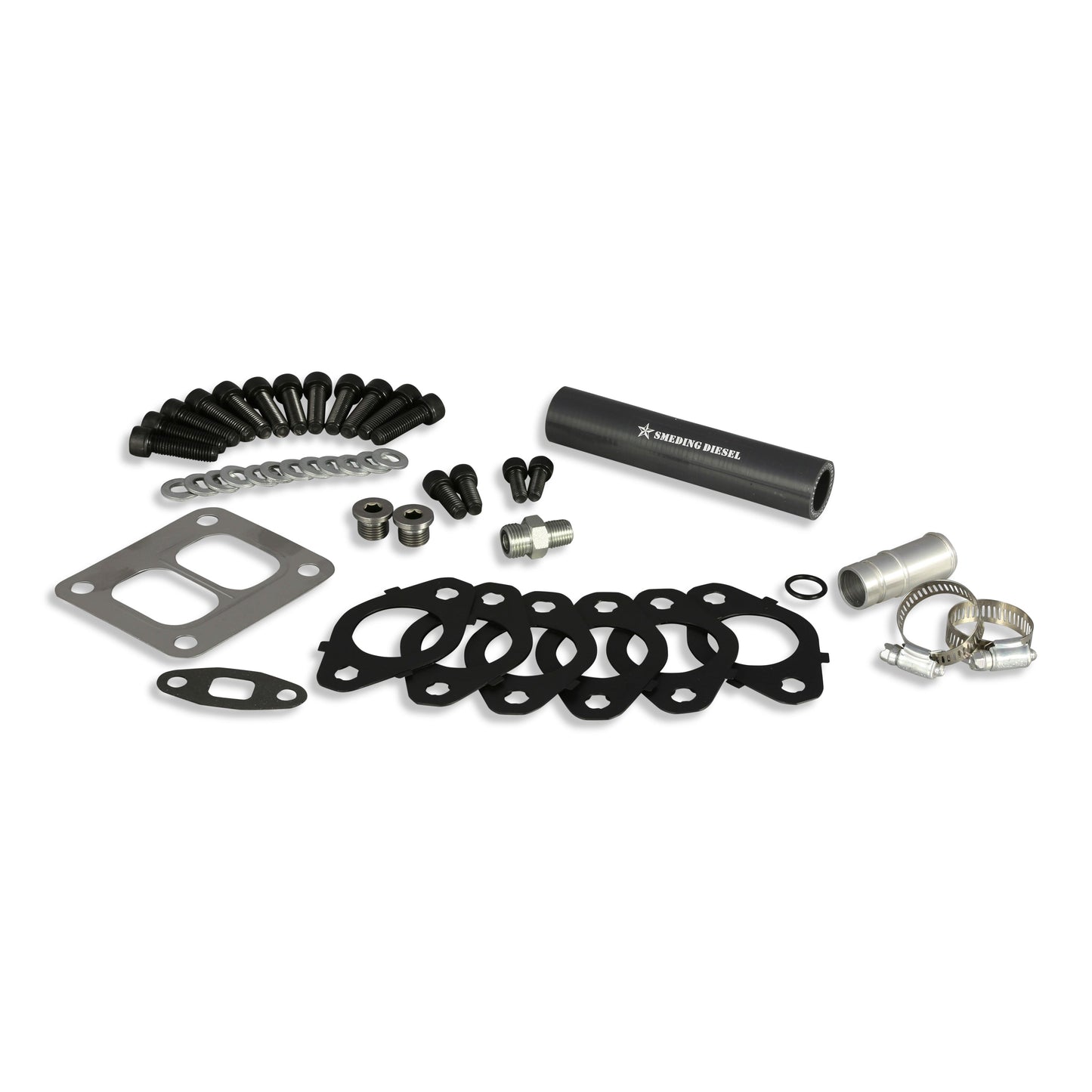

Thanks to Smeding Diesel's upgraded exhaust manifold positioning the S300 in the stock location, all of the factory components surrounding the turbo can be retained. That means your factory air intake, downpipe, and intercooler piping don’t have to be changed out (a welcomed cost savings). Smeding Diesel streamlines the installation of this kit even further by supplying you with all necessary hardware, hose clamps, gaskets, and fittings required for the job.
Sized For Every Application
As with all of Smeding Diesel turbo kits, the S300 system for the 5.9L Cummins ranges from a standard cast compressor wheel option for stock fuel trucks to a billet wheel version capable of supporting more than 650 hp. 62mm and 66mm cast compressor wheel options feature time-tested, cast-aluminum construction, a proven 7-blade design, and represent the most cost-effective wheel option in our arsenal. Smeding Diesel's billet compressor wheels are CNC machined out of a solid block (billet) of aluminum to our exact specifications. These upgraded wheels are lighter, provide quicker spool up, and range in size from 63mm all the way up to 72mm.
Highlights:
*Improved performance and reliability
*Proven, fixed geometry S300 platform
*Higher boost potential
*Reduced EGT
*High-flow T4 divided exhaust manifold for quicker spool up
*System retains the factory air intake, downpipe, and intercooler piping
*Supports higher horsepower (650+ HP depending on the turbo you choose)
*Most customers see a 1-2 mpg gain
*No more coolant supply (one less job for the cooling system to perform)
*Pricing begins at $1,700
Turbo Options
*Cast 62mm compressor
*Billet 63mm SXE compressor
*Billet 64.5mm SXE compressor
*Cast 66mm compressor
*Billet 66mm SXE compressor
*Billet 69mm SXE compressor
*Billet 72mm SXE-R compressor (only available with 360-degree thrust bearing upgrade)
*Billet 63mm SXE-R compressor (only available with 360-degree thrust bearing upgrade)
Further Fortification
*Heavy duty thrust bearing (+$75)
*360-degree thrust bearing (+$175)
Cast vs. Billet explanation:
The term cast wheel is referencing the material used to produce the compressor wheel. Smeding Diesel's cast wheels are made of cast aluminum and they are a 7 blade design, this style wheel has been around for many many years and is very reliable. Cast wheel are the most cost effective wheel option we offer.
Billet wheel means that the compressor wheel is made from a solid block of aluminum that is CNC machined to Smeding Diesel's exact specification. Billet wheels are much more advanced wheels compared to there cast wheel counterparts because we can use a stronger material, more aggressive blade designs, and make them lighter weight then a cast wheel. Billet wheels will provide faster spool up and make more horse power then a cast wheel will. Most of our billet wheel utilize a 6 blade design!
Thrust bearing explanation:
Smeding Diesel offers three different thrust bearings: Standard, Heavy Duty and Steel 360* bearing.
The standard bearing is very robust and extremely reliable when used with in its design limits, but In our high performance industry many of our customers like to push the limits so Smeding Diesel decided to offer bearings that would help them push those limits!
The next step up from a standard bearing is the Heavy Duty bearing, this bearing is great for guys that are heavy haulers and beat on these trucks every day. The Heavy Duty bearing uses a custom cut bearing to allow the bearing to handle more abuse.
Finally is the big dog of thrust bearings, Smeding Diesel's Steel 360* thrust bearing is the strongest bearing option on offer. This bearing has 360* of coverage and has a very aggressive pitch on the oiling surface allowing our turbos to be used in very extreme duty applications. We recommend this bearing on trucks being used in racing applications.
